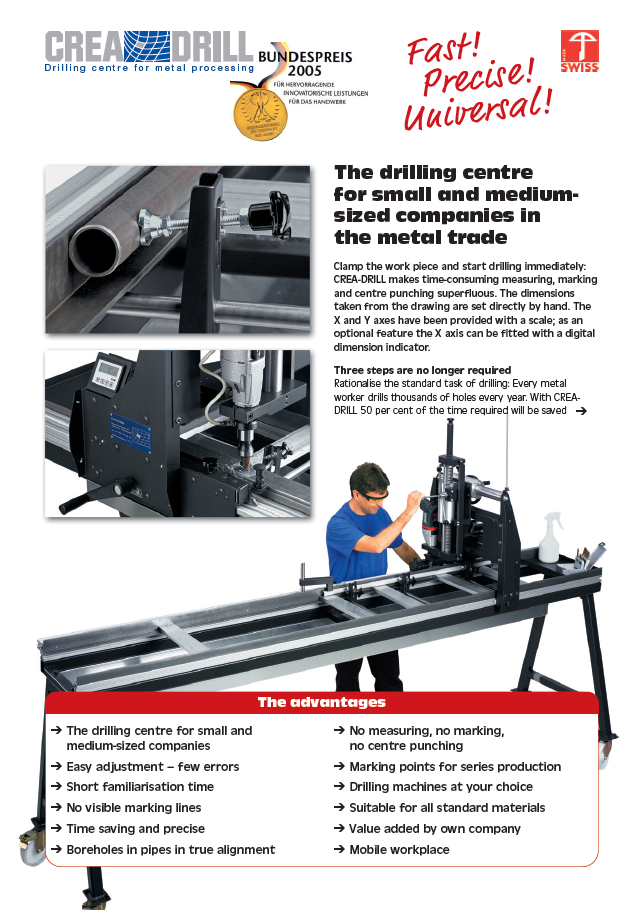

Clamp the work piece and start drilling immediately: CREA-DRILL makes time-consuming measuring, marking and centre punching superfluous.
The dimensions taken from the drawing are set directly by hand. The X and Y axes have been provided with a scale; as an optional feature the X axis can be fitted with a digital dimension indicator.
Easy adjustment – few errors
Short familiarisation time
No measuring, no marking, no centre punching
Light, compact construction, the mobile workplace
Ergonomics at the work place
Marking points for series production
The drilling centre for small and medium-sized companies
From practical experience for work in practice
Suitable for all standard materials
Faster assembly, less reworking – time is money
Value added by own company
Positioning precisely settable
No visible marking lines
Time saving and precise
Boreholes in pipes in true alignment
Dimensions to be set
Digital measurement indication
Adjustable marking points
Adjustable depth marking point
LxWxH of work piece
Weight of work piece
Maximum travel
Drilling capacity max. Drill-Ø
Max. Core Drill-Ø
Dimensional accuracy in keeping with German standard
on X and Y axes
on X and optional Y axes
on X and Y axes
on Z axis
6000 x 320 x 100 mm
250 kg
X = 3000 mm, Y = 200 mm
twist drill up to 16 mm
rotating circular saw up to 50 mm
DIN ISO 2768-1c
Rationalise the standard task of drilling: Every metal worker drills thousands of holes every year. With CREA-DRILL 50 per cent of the time required will be saved as measuring, marking and centre punching is no longer needed. Keep value creation in your own company – even in case of larger commissions your drilling work will be economical.
The requested dimensional points can be approached directly by the drilling unit; and you can start drilling immediately. The dimensions can be read off on the scale or the digital indicator. A series starts at two components already: Set the position of the drilling point once, and several components can be drilled identically.
Use CREA-DRILL to drill all standard materials and profile cross-sections. When drilling pipes – such as newel posts –, all boreholes are in true alignment because the work piece remains fixed in one clamping position.
The machine mount is suitable for all drilling machines at your choice. We recommend two-speed drilling machines with electronic speed control and output as from 1'000W. These drills can be used to carry out all standard drilling tasks.
As an optional feature, CREA-DRILL can be supplied on dollies. The drilling machine moves to the work place – the work pieces need not be transported to the upright drilling machine.
CREA-DRILL can be used to carry out all drilling activities which up to now have been done on an upright drilling machine. The working steps of measuring, marking and centre punching are no longer required.
Count the number of drilling actions your company carries out per year and calculate the time required for the purpose. The potential time saving will convince you of the savings potential of CREA-DRILL.
For cost-benefit reasons, we have not included a pneumatic device. As all kinds of profiles will be drilled on the CREA-DRILL, work is quicker using a manual clamping device. A pneumatic clamping device or a quick-clamping device only makes sense if the cross-section of the profile is always the same, otherwise the set-up work would be too complicated. Please contact us.
For example, using the tungsten-carbide, rotating circular band saws from the Karnasch company, or with a crown bit (use a drilling machine with an MK2 crown).
Yes. The holes are first drilled on one side, and the rod is then turned and the other side is drilled. As an option, the CREA-DRILL can be fitted with a hinged stop that can be pivoted away. In this way, the rod can be simply pushed through.
Clamp the round tube, set the X-axis as the axis and drill straight away. There is a time-saving of 75% in comparison to conventional methods on column-mounted drilling machines.
