The tube centring tool CREA-TUBE
Fast and secure centring and clamping of tubes.
The tube centring jig – long proven in the tube industry – is an innovative tool for tube butt joints.
Fast adaptation
Diameter compensation – even with different cross-sections
Very simple operation, short setup time
Mobile workplace
Light, compact construction, the mobile workplace
Ergonomics at the work place
Multiple steps in one
Insert, clamp, centre – without assistance
Securely held – both hands free for welding
Universally applicable
Round and square tubes, angle adjustable from 50 to 180 degrees
From practical experience for work in practice
Time is money
Faster assembly, less reworking – time is money
Precision
Positioning precisely settable
Double collets – tubes held in alignment
Technical Data
Length / Width / Height
Weight
Material round
Material square
Angle range
Surface treatment
190 mm / 175 mm / 180 mm
3.7 kg
10 - 65 mm Ø
up to 50 mm width
50 - 180°
galvanized (prisms: inox)

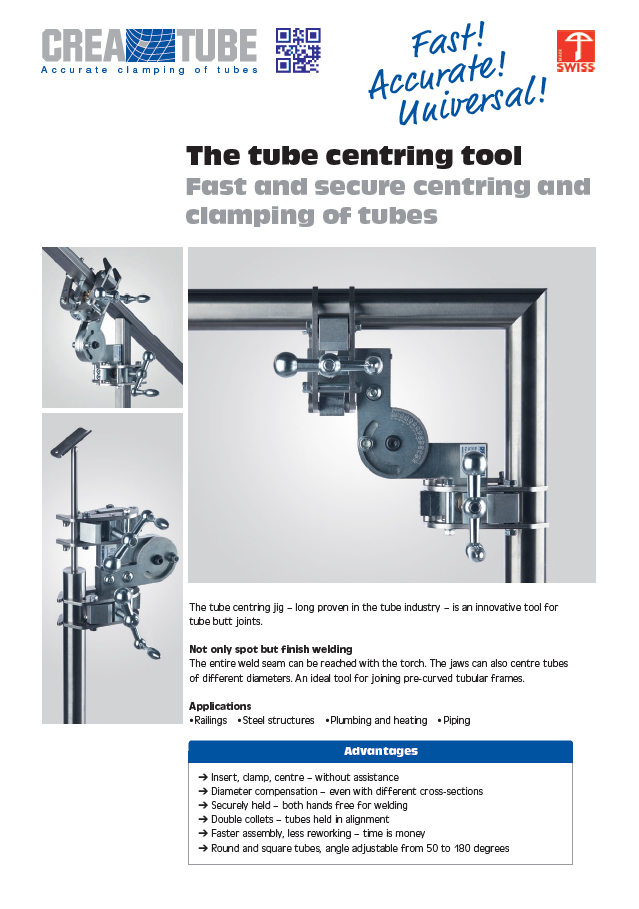

Fast and secure centring and clamping of tubes
The tube centring jig – long proven in the tube industry – is an innovative tool for tube butt joints. The entire weld seam can be reached with the torch.
Not only spot but finish welding
The entire weld seam can be reached with the torch. The jaws can also centre tubes of different diameters. An ideal tool for joining pre-curved tubular frames.
Applications
- Railings
- Steel structures
- Plumbing and heating
- Piping
